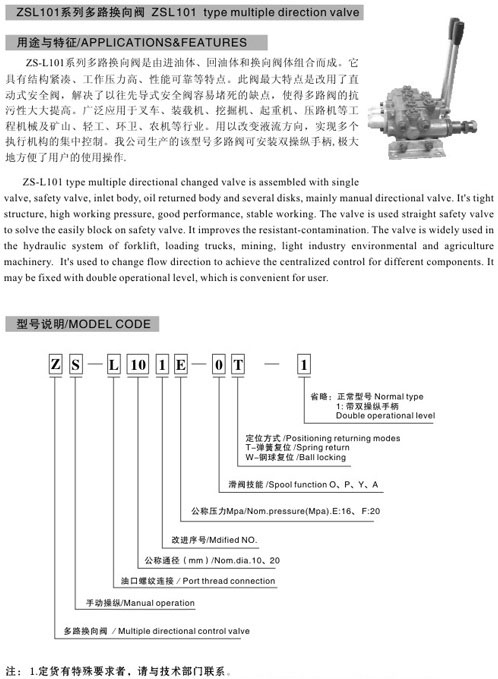

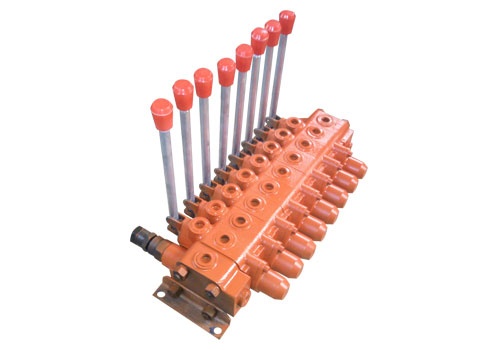

ZS-L101 type multiple directional valve ZS-L101 series multi-way reversing valve is composed of oil inlet body, oil return body and reversing valve body. It has the characteristics of compact structure, high working pressure and reliable performance. The valve adopts direct acting safety valve, which solves the shortcoming of previous pilot safety valve which is easy to be blocked up, and greatly improves the anti-fouling property of multi-way valve. Widely used in tractors, forklifts, loaders, excavators, cranes, rollers and other construction machinery and mining, light industry, sanitation, agricultural machinery and other industries. The valve can be in any combination between 1 and 15 sets.
This type directional valves other models:multiple directional valve ZS-L101E-OT-1, multiple directional valve ZS-L201E-PT-1, multiple directional valve ZS-L101E-PT-A, multiple directional valve ZS-L201F-PW-1, multiple directional valve ZS-L20E-YW, multiple directional valve ZS-L201F-AW-1
