Products > Piston pump > > 250PCY14-1B Constant Pressure Variable Axial Piston Pump

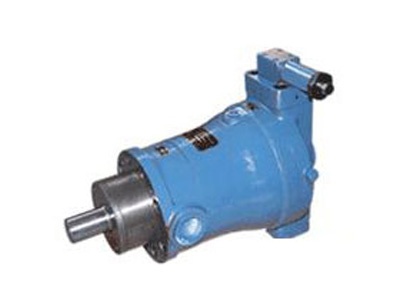

Product name : 250PCY14-1B Constant Pressure Variable Axial Piston Pump
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
250PCY14-1B Constant Pressure Variable Axial Piston Pump

How to order:



Specification:

Model No Pressure Mpa Delivery ml/r Rated speed r/min Flow l/min Power KW Max Torque N.M Weight kg
1.25PCY14-1B















32

1.25















1500

1.25 0.9 8.7 4.5
2.5PCY14-1B 2.5 2.5 1.43 17.5 4.5~7.2
5PCY14-1B 5 5 2.9 27.4 10
10PCY14-1B 10 10 5.5 54.6 16.1~24.9
25PCY14-1B 25 25 13.7 134.9 28.2~41
32PCY14-1B 32 32 11.4 108.5 35
40PCY14-1B 40 40 20.7 197.5 40
63PCY14-1B 63 63 34.5 339.9 56~74
80PCY14-1B 80 80 29.2 278.8 63
160PCY14-1B 160 160 89.1 880.3 138~168
250PCY14-1B 250 250 136.6 1272.4 227
400PCY14-1B 400 400 138 1906.0 230

Features:
PCY piston pump models: Piston pump 1.25PCY14-1B, piston pump 2.5PCY14-1B, piston pump 5PCY14-1B, piston pump 10PCY14-1B, piston pump 25PCY14-1B,
32PCY14-1B piston pump, piston pump 40PCY14-1B, piston pump 63PCY14-1B, piston pump 80PCY14-1B, piston pump 160PCY14-1B, piston pump 250PCY14-1B
piston pump 400PCY14-1B

The PCY14-1B axial piston pump is equipped with a valve plate and a cylinde block. In order to reduce the friction between the piston shoe and the wear plate, as well as the friction between the cylinder block and the valve plate, the product is designed with a hydrostatic balance system. This design provides the product with longer service life. Also, the product has other features, suct as simple structure, high efficient, light weight, and strong self-suction capability.
